The Mutant K5


A closer look at my '75 Blazer
(The Process of Elimination)



Chronological Timeline of Upgrades and Events


July 1997
The '75 K5 Blazer is bought with the following: D44 front/Corp.
12 rear (both open) w/3.07 crappy rims/tires
 original 350 that was very tired
Th350 w/NP203 full time T-case






Currently (November 2017)

D60 w/4.56, hydro-assist w/cooler & filter
Crossover/High Steer
14 BFF welded w/disc brakes & prop. valve
Rebuilt original 355 (.030 over)
TH350/NP205 w/twin sticks
GotPropane fuel system
38.5 x 14.5 x 15 TSLs, on TMI beadlocks




1998
 New 35" Stag tires
mounted on
American Racing 15" steel rims
newer hood to replace the bent original








1999(?)
Pulled motor and stored
Salvage yard 305 installed
Started saving for an engine rebuild









2001(?)
Original motor is rebuilt into a 355 ci
the motor is installed back into truck












2002
4" Suspension lift installed
Front springs
Rear blocks
(New hood already taco'd)










2003
Was given a front clip to test out
Drove it like that for a few months












Later that year
I scored some straighter sheet metal
This was the longest look its had to date










Same year
Finished my first custom bumper
(Mad Props to Limey for the help)











Same year
Went with Limey to wheel
Near Midland, TX.
5 Mile












Same year
Attended my first 4x4 event
Held in Kermit, Tx.
Sponsored by Texas4x4.org
I went without a front drive-shaft












2004
Installed ORD
Shackle flip kit
in rear













Same year





Same year
Installed new Edelbrock
Performer Carb & Intake











Same year
Cut rear fender rust out
Used a sawzall while on break at work













2005
installed a crate TH350 made by Accurate
Had the NP203 professionally rebuilt
Mile Marker part time kit installed









Aug. 2005
Bought a set of
36x12.50-15
TSL Super Swampers








Late 2005
Beta version of new from bumper is unveiled














Late 2005
Basic C-channel rear bumper installed













2006
Rear driveshaft spins in half













Same year
Fiberglass top is cut into
Pick-up truck style












Same year
Salvage yard rear 3/4 ton leaf springs
installed
The truck now sits higher in rear







Same year
13 months after install
Crate Transmission breaks at housing
1 month past warranty

(Blazer sat dormant for a few months)




2007
TH350 is bought from the salvage yard
It is installed
(the salvage yard pulled it from a '76 K5)
A transfer case brace is built from spare parts
that came from CapitalJ's Bronco project







2008
CapitalJ and I build a custom grill
The truck instantly looks better
and is now armored









Feb. 2008
The transfer case grenades in low range
High range still operable









Later that year
An NP205 is bought from Craigslist
A JB Fab twin stick is installed












Later that year
A truck tail gate is installed










Later that year
ORD Zero-Rate installed
Front axle is relocated 1.5" forward









Later that year
After flexing i realize my brake lines are my limiting factor
ORD stainless extended brake lines installed








Later that year
Mini-Spool installed into Corporate 12 bolt rear
Instant traction
As well as satisfaction








Later that year
Top is cut down even more due to stress cracking
Fiberkini is debuted








Later that year
Complete interior removed, cleaned
& spray liner is applied.









Later that year
Tail light delete panels
are fabbed and installed with trailer lights









Later that year
New front clip is purchased from Craigslist
Fenders are cleaned up,
Wells are cut and riveted
Whole exterior is sanded






Memorial Week-End 2008
2 coats of industrial primer is applied
CapiltalJ played a huge roll is this









2 Days later
After curing, stickers are applied

(You gotta represent)









Nov. 8th, 2008











Nov. 2008
Carnage from wheeling trip
Rear output on T-case is destroyed










Later that year
new poly body mounts installed










Later that year
Bed rail armor fabbed and installed











Later that year
Advanced Adapter rear output flange installed

















Later that year
Used 1/2 ton Ford style flange
Mounted to driveshaft







Dec. 2008
14BFF is bought from Craigslist
open diff w/ 4.56 R&P








2009
14 bolt is stripped down to spindles
Sits for over a year as a side project








Later that year
Ruff Stuff brake brackets installed













Later that year
New rotors are pressed onto hubs
New wheel studs
New bearings
















Later that year
New calipers and pads













Later that year
New floor boards are installed
My dad played a huge roll in this














Later that year
Spiders are welded into the
Orb of Traction










Jan. 2009












February 15, 2010
Bed stiffener fabbed














Jan. 2011
The 14 bolt is installed in truck













Later that year
I, with the help of my boss, mill two custom control arms









Later that year
I, with the help of my boss,
Mill two flat top knuckles to the same size
New ball joints and control arm studs are installed






Later that year
Cross over - high steer kit installed
Bought from WFO Concepts










Later that year
New Yukon full spool & Yukon Gears
installed professionally
into Dana 44














Later that year
New 8 lug rotors installed
Truck is now considered 3/4 ton












Early 2012
CapitalJ & I install an ORD frame brace








Feb., 2012
New H.A.D. rear 1 ton driveshaft installed









Jan., 2013
Used 2nd generation Mitsubishi Eclipse seats
bought from Craigslist & Installed

















March 2013
2013 Big Meats Run









Sept., 2013
On going side project begins
TMI Beadlock kit
Welded to Bart 15" rims








Later that year
My first toolbox is repurposed
Now its a center console










Later that year
RCI 16 gal. fuel cell is bought from Craigslist
Custom cradle is made to hold it
Fuel gauge sender is cut into and mounted to cell









Early 2014
Beadlocks are completed






March 2014
I buy a Dually to haul the Blazer





March 2014
2014 Big Meats Run










Late March, 2014
Discovery of broken R&P in D44
Dana 60 bought from 4x4Land
Open carrier w/ 4,56






April 1, 2014
D44 is removed from the Blazer









April 10, 2014
D60 is installed
Steering box is removed & cleaned









April 11, 2014
Installed DIY4X tapped endcap











April 12, 2014
Sector shaft cover is tapped












April 24, 2014
Mounted steering cooler & plumbed
Plumbed steering box
Tie rod clamp welded to bracket









D60 cover soft mounted
Ram bracket mocked













May 14, 2014

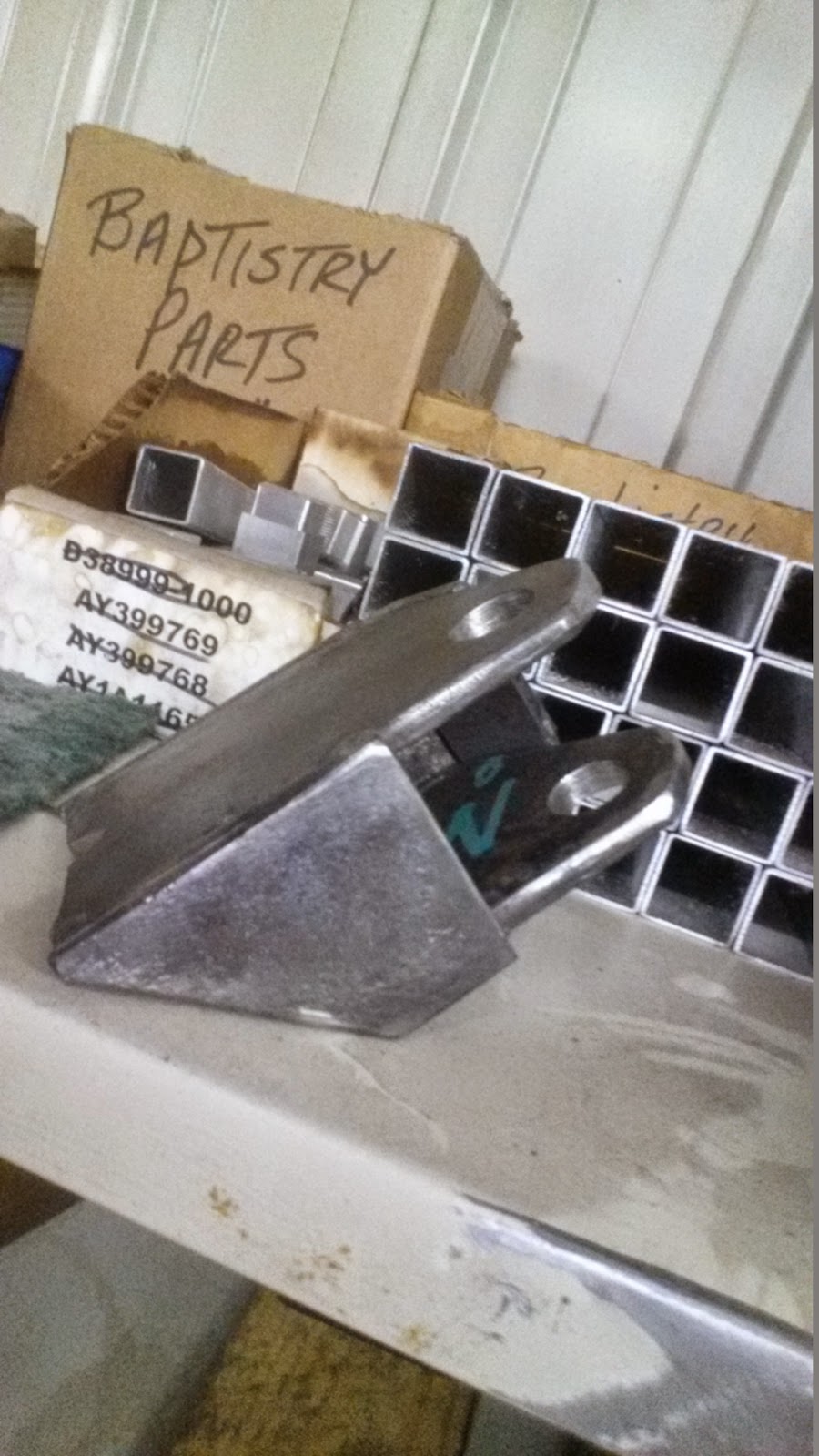

Bracket for ram to cover fabricated


















May 17, 2014
Cover with bracket welded
is found to be too tall
Modifications needed











June 26, 2014
Reservoir adapter is made
Turned from aluminum
slip fit into OEM tank on bottom
1/2"NPT threads on top



July 7, 2014
17 year anniversary of ownership

Reservoir is mounted to a spare OEM style pump
Completion of Hydro-Assist part 1











July 9, 2014
Adapter with fluid temp sensor fabbed












July 13, 2014
Fabbed & installed reservoir stiffener bracket













Same Day
Installed remote steering fluid filter










August 4, 2014

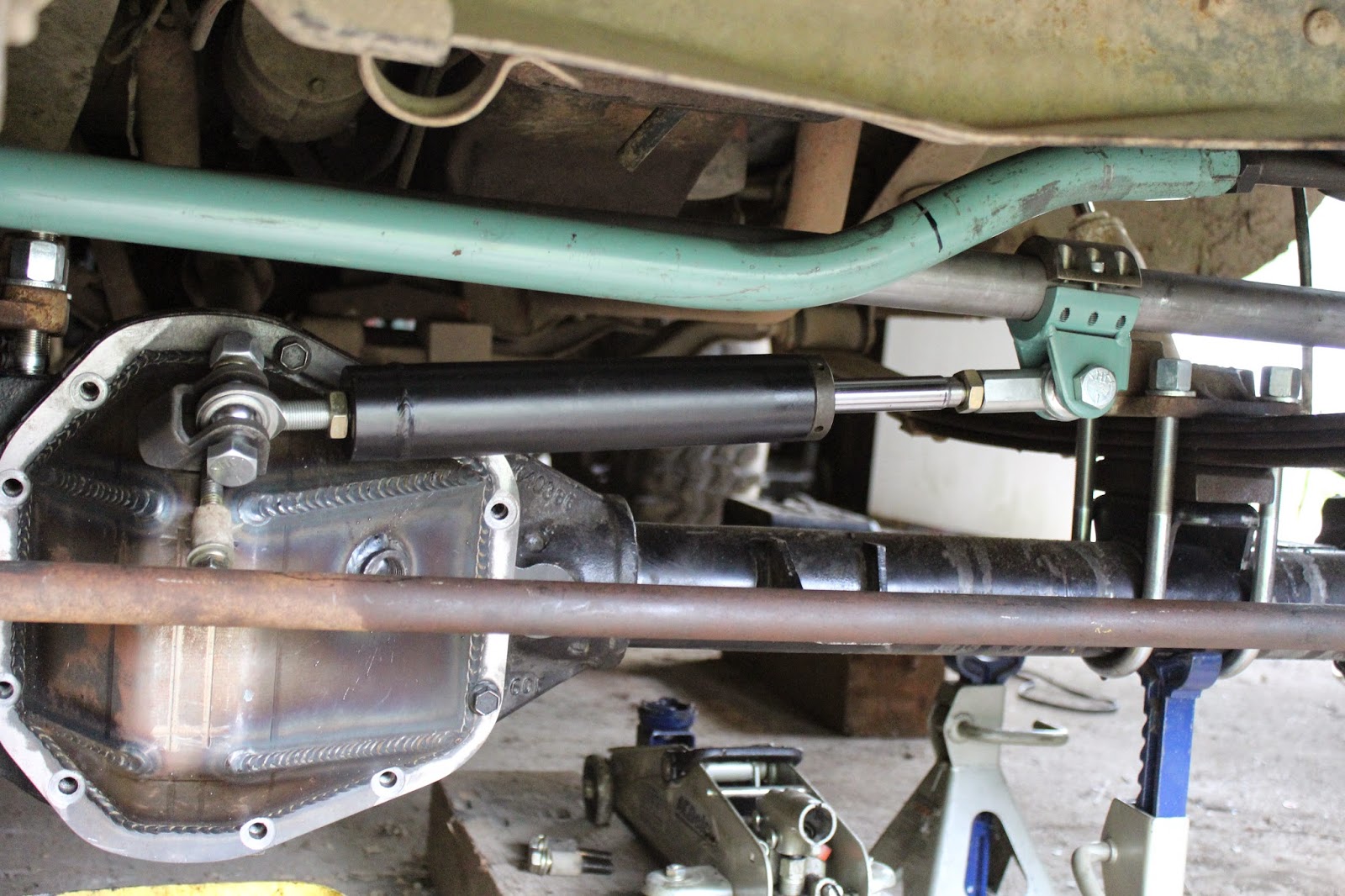

Final mock up of ram bracket & cover
Cover is installed
Ram is installed
Tie rod clamp bracket is installed
Completion of Hydro-Assist part 2








November 11, 2014
Aluminum spacers are fabbed & installed
Effectively limiting 3/4" of over travel
Completion of Hydro-Assist part 3












November 1, 2014
End of the Year Snowball Trip









November 19, 2014
Propane kit from GotPropane arrives










November 29, 2014
Propane carb. installed
Converter installed
Both are plumbed










January 13, 2015
Propane brackets are mounted to a frame
Frame is mounted to bed of Blazer
Spare tire is relocated
Rear utility box is relocated







Same day
Bulkhead is mounted
All fuel line is ran
Solenoid is wired












Same day
Propane swap completed








March 26-29, 2015
Big Meats Run 2015 Event












July 18, 2015
Kansas Rocks















September 19, 2015
Wheeling for the Wounded
Disney, Ok










November 2015-March 2016
Winter Upgrades
Fusebox
Rewired electrical
Cab Cage
Tires
Seats








March 17-20, 2016
Hot Springs Off Road Park
Solo Trip








July 2016
Rush Springs Off Road Park
Pineville, Mo.
Solo Trip






Nov. 2016- March 2017
Winter Upgrades
Fix Transmission, brace T-case
Reinforce crossmember
Trans cover restore
Custom B&M shifter installed






April 8, 2017
Disney Day Trip
138Mdified Crew









June 24-25
Southern Missouri Off Road Ranch
(SMORR)
Solo Trip











 July 7th, 2017

20th annivery of ownership
Level up

Memorial Tattoo












October 27-29, 2017
Rocktoberfest
Hogans Campground
Disney, Ok.
